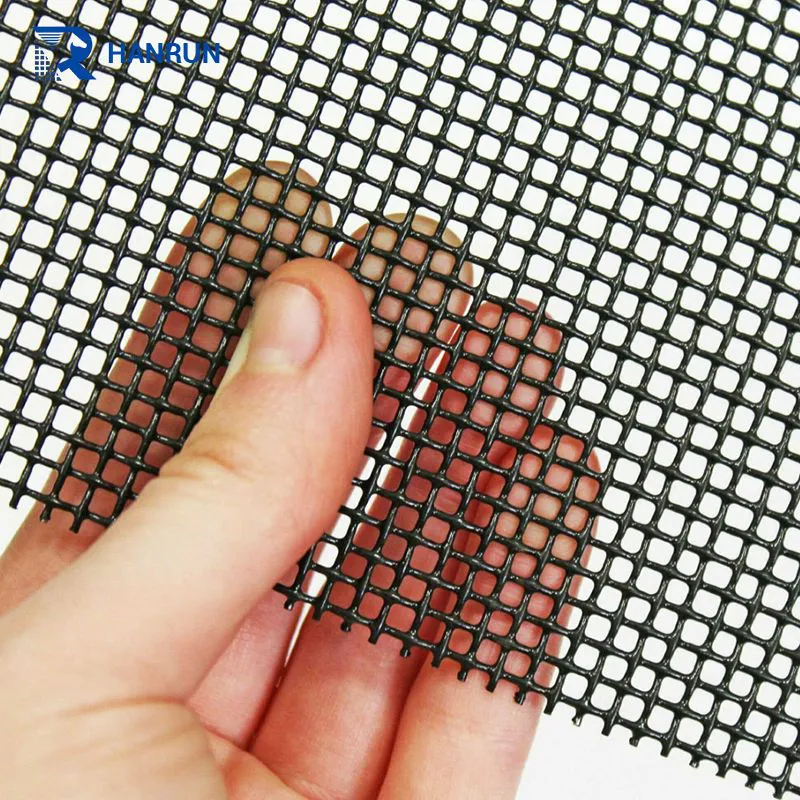

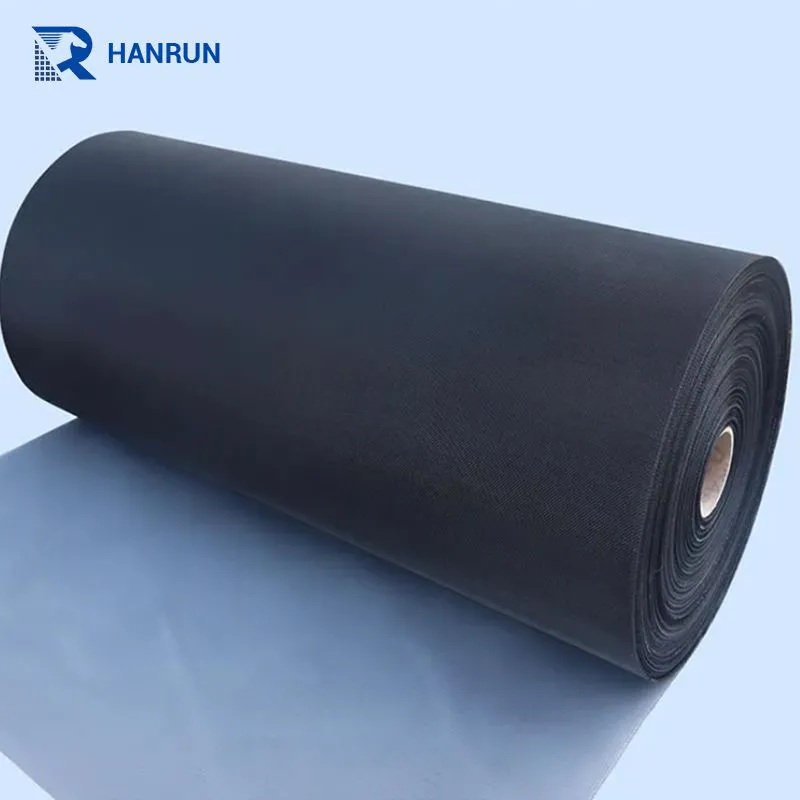

Epoxy Coated Mesh

Industrial-grade epoxy mesh is primarily used as a support layer in hydraulic or air filters, serving as a crucial component of filtration systems. Civil epoxy mesh is mainly used as the security screen in the High-grade apartments and office buildings. It is formed by making the special epoxy powder adhering on surface of mesh woven with different type of wires through the electrostatic spraying process, then in the course of time and temperature, the epoxy powder melts and covers on the mesh surface to form the dense protecting layer. The common substrate mesh are stainless steel mesh, aluminum mesh, mild steel mesh. The epoxy powder includes indoor types and outdoor types. Hanrun can also customize the product according to customer requirements.

Inquire Now

Features

High Corrosion Resistance

The epoxy resin coating effectively resists acids, alkalis, moisture, and other environmental factors, making it suitable for harsh conditions.

Strong Adhesion

Advanced coating technology ensures a tight bond between the epoxy layer and the metal mesh.

Excellent Mechanical Properties

The coating enhances the mesh's wear resistance and flexibility, making it suitable for high-load applications.

Customizable Colors and Specifications

Common colors include black, gray, and green, with customizable mesh sizes, wire diameters, and dimensions available.

Environmentally Friendly & Safe

Complies with international environmental standards, free from harmful substances, making it suitable for applications in the food and medical industries.

PRODUCT ADVANTAGES

Oil-Resistant Corrosion Protection

Can withstand tests in hydraulic oil mediums of various brands and temperatures worldwide, with no changes on the coating surface, making it suitable for high-temperature and high-pressure hydraulic filtration applications.

Weatherproof Corrosion Resistance

Meets ASTM B117-09 salt spray test standards, enduring continuous exposure in a saline environment for 96 hours without surface degradation, making it ideal for air filters in harsh and outdoor conditions.

Strong Adhesion

Passes H-grade pencil test, 1kg/50cm impact test, scratch test, and fatigue resistance test.

Exceptional Flexibility

Can be bent over a rod with a 1mm curvature radius without cracking.

Stable Structure After Cutting

Wire edges do not unravel after slitting, and the interwoven points maintain a bonding strength capable of withstanding 0.7kg force.

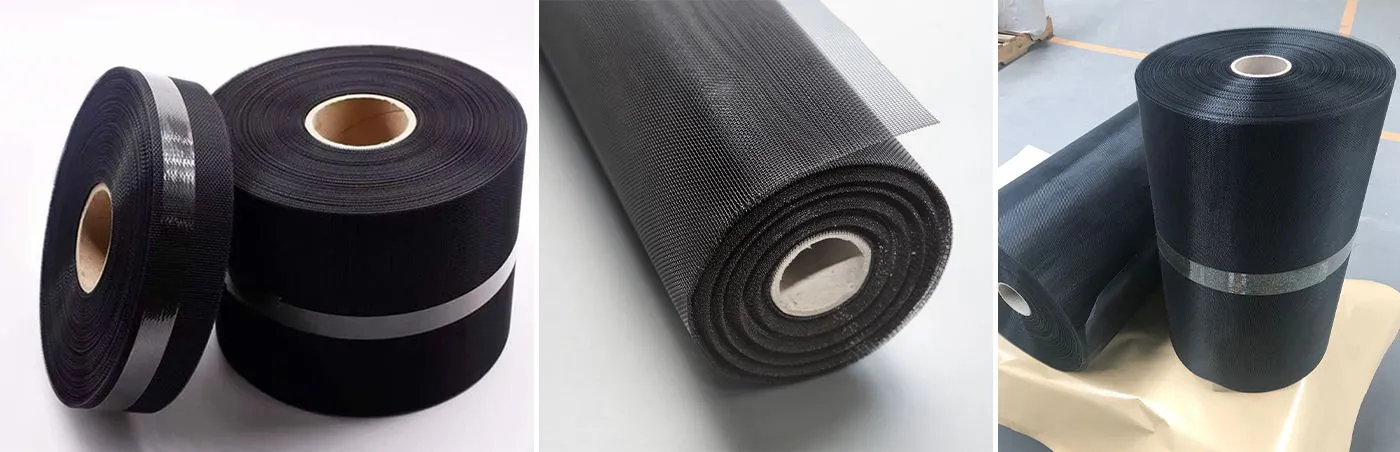

Epoxy Coated Mesh

Epoxy Coated Wire Mesh Specifications

Material	Coating	Specification (mesh)/Diameter (mm)	Width (mm)	Length (m)
Q195	Black/Gray/White/Green (oil-resistant)	18×14/0.18	20-1300	30-300
Q195	Black/Gray/White/Green (oil-resistant)	18×14/0.21	20-1300	30-300
Q195	Black/Gray/White/Green (oil-resistant)	22×20/0.18	20-1300	30-300
Q195	Black/Gray/White/Green (oil-resistant)	22×20/0.21	20-1300	30-300
Q195	Black/Gray/White/Green (oil-resistant)	12×10/0.254	20-1300	30-300
5154A	Black/Gray/White/Green (oil-resistant)	18×14/0.21	20-1200	30-300
5154A	Black/Gray/White/Green (oil-resistant)	18×14/0.23	20-1200	30-300
5154A	Black/Gray/White/Green (oil-resistant)	16×15/0.21	20-1200	30-300
5154A	Black/Gray/White/Green (oil-resistant)	16×15/0.23	20-1200	30-300
Remarks	Customizable specifications, wire diameters, coatings, and sizes
