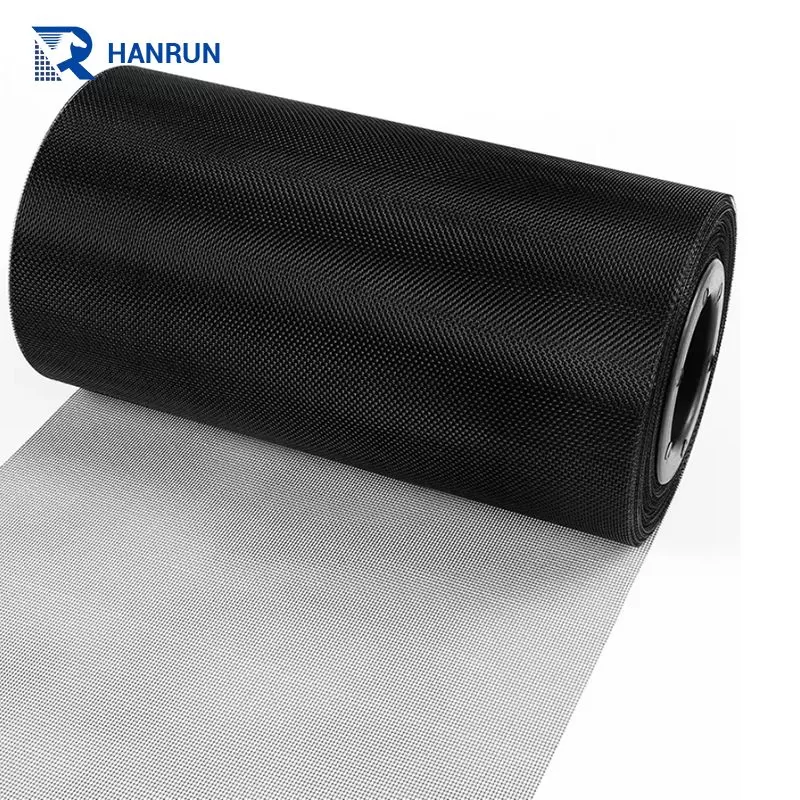

Epoxy Coated Mesh
Epoxy coated mild steel wire mesh is mainly used as a support layer for hydraulic or air filters. It can also be used for the security of high-grade apartments and office buildings. It is made of special epoxy powder adhered to the surface of mesh woven by different types of wire through electrostatic spraying process. With the change of time and temperature, the epoxy powder melts and covers the mesh surface to form a dense protective layer.
Features
01
Strong corrosion resistance
The epoxy resin coating effectively resists environmental influences such as acid, alkali and moisture, and is suitable for harsh working conditions.
02
Strong adhesion
Advanced coating process is used to make the coating closely bonded to the wire mesh.
03
Excellent Mechanical Properties
The coating increases the abrasion resistance and bending resistance of the wire mesh, making it adaptable to high load environments.
04
Customizable
Common colors include black, gray, green, etc. Different mesh holes, wire diameters and sizes can be customized according to customers' needs.
05
Eco-friendly and safe
Conforms to international environmental protection standards, does not contain harmful substances, and can be used in food, medical and other industries.
PRODUCT ADVANTAGES
Oil-immersion corrosion
It can withstand different temperatures and time tests of hydraulic oil media of various brands from all over the world without any change in the surface of the coating, which is suitable for high-temperature and high-pressure special hydraulic filtration products.
Weatherproof corrosion
According to ASTM B117-09 salt spray test standard, it can be tested continuously for 96 hours in a salt-containing environment without any change on the surface of the mesh, which is suitable for air filters used in harsh environments and outdoor environments.
Strong adhesion
It can pass H-class pencil test, 1kg/50cm impact test, scratch test and fatigue test.
Excellent Flexibility
The mesh is folded on a pole with a radius of curvature of 1mm, and there is no breakage on the surface.
The side filaments do not fall off after slitting and cutting
And the bonding force of interwoven points can withstand 0.7kg force.
Epoxy Coated Wire Mesh Specifications
| Material | Coating | Specification (mesh)/Diameter (mm) | Width (mm) | Length (m) |
| Q195 | Black/Gray/White/Green (oil-resistant) | 18×14/0.18 | 20-1300 | 30-300 |
| Q195 | Black/Gray/White/Green (oil-resistant) | 18×14/0.21 | 20-1300 | 30-300 |
| Q195 | Black/Gray/White/Green (oil-resistant) | 22×20/0.18 | 20-1300 | 30-300 |
| Q195 | Black/Gray/White/Green (oil-resistant) | 22×20/0.21 | 20-1300 | 30-300 |
| Q195 | Black/Gray/White/Green (oil-resistant) | 12×10/0.254 | 20-1300 | 30-300 |
| 5154A | Black/Gray/White/Green (oil-resistant) | 18×14/0.21 | 20-1200 | 30-300 |
| 5154A | Black/Gray/White/Green (oil-resistant) | 18×14/0.23 | 20-1200 | 30-300 |
| 5154A | Black/Gray/White/Green (oil-resistant) | 16×15/0.21 | 20-1200 | 30-300 |
| 5154A | Black/Gray/White/Green (oil-resistant) | 16×15/0.23 | 20-1200 | 30-300 |
| Remarks | Customizable specifications, wire diameters, coatings, and sizes | |||
VIDEO

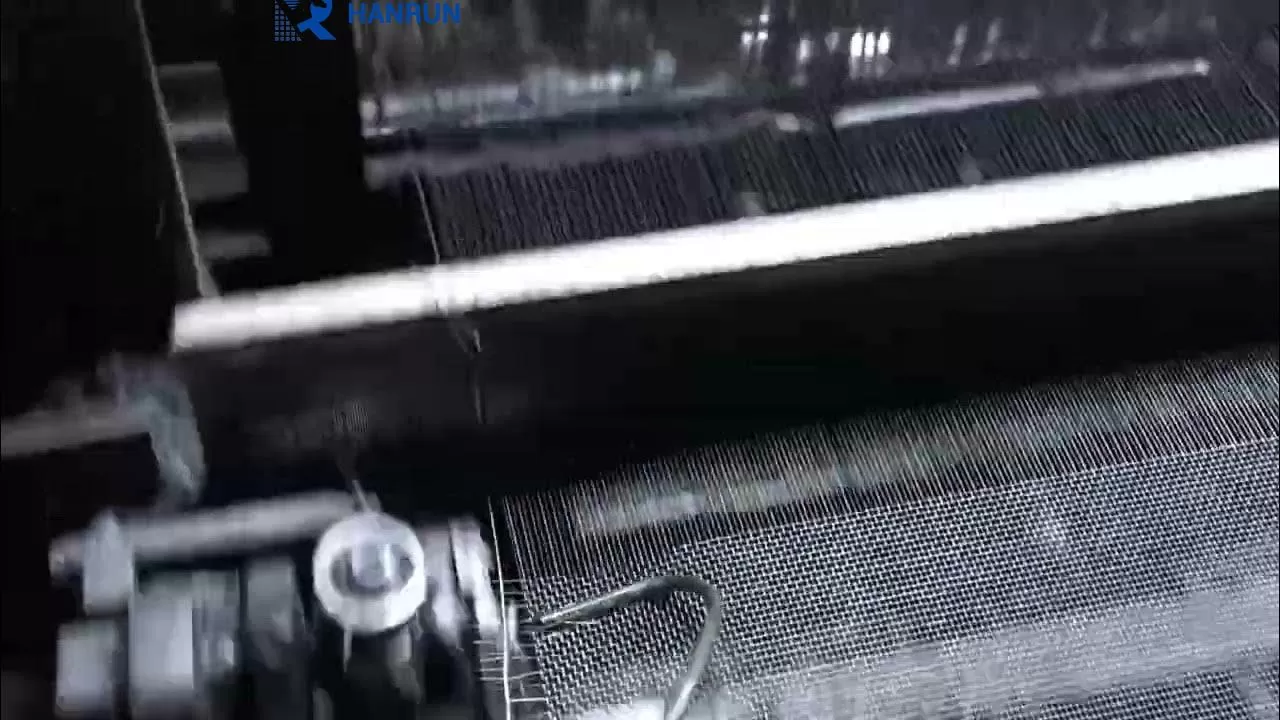

Ultra High Definition Epoxy Coated Mesh Production Process
