Mesh Filter

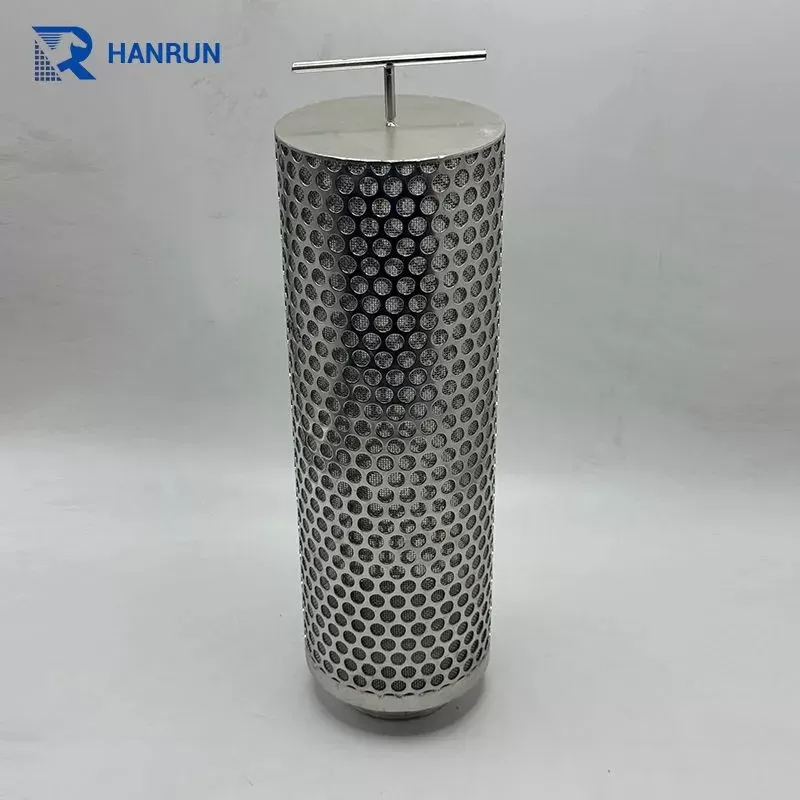

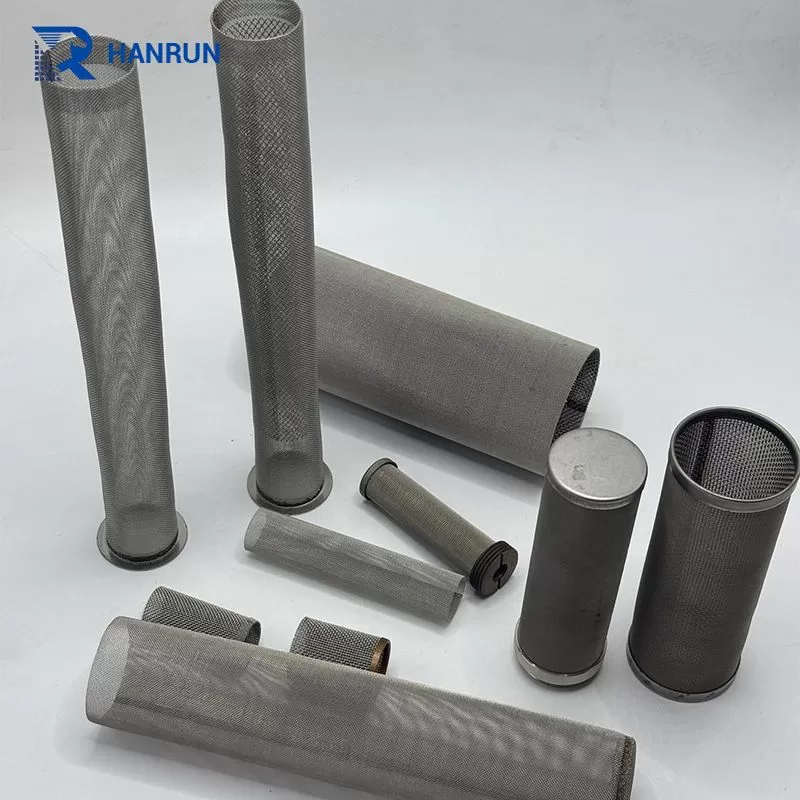

The cylindrical - type mesh filter is a three - dimensional filtering element. It uses materials such as stainless steel mesh, copper mesh, and epoxy - coated mesh as raw materials. Utilizing the cylindrical structure, it expands a large filtration area in a small space and supports bidirectional filtration of fluids (inside - out or outside - in).
Features
01
Large Filtration Area
The cylindrical form maximizes the filtration area, supporting high flow rates and long service cycles, which is superior to most conventional filter elements.
02
High Mechanical Strength
The robust structure can withstand high pressure differentials, suitable for various high - pressure filtration scenarios.
03
Flexible Materials
Stainless steel mesh is suitable for industrial/high - purity scenarios; copper mesh meets electrical conductivity requirements; epoxy - coated mesh enhances resistance to harsh environments.
Applications
Fluid Conveyance Systems: Widely used for liquid/gas filtration in pipelines, suitable for oil filters, fuel filters, and transmission fluid filters of automobile engines, matching standard filter housings to ensure the cleanliness of core components.
Pharmaceutical and Biological Fields: Used for filtering pharmaceutical liquids, biological buffers, and cell culture media. The stainless steel material is sterile and corrosion - resistant, meeting the requirements of highly regulated industries.
FAQ
1. Are your cylindrical mesh filters fully welded or spliced?
Depending on size and structure, we offer various methods such as roll welding, spot welding, butt welding, and edge-wrapped welding.
2. Can your cylindrical mesh filters be provided with flanges or threaded interfaces?

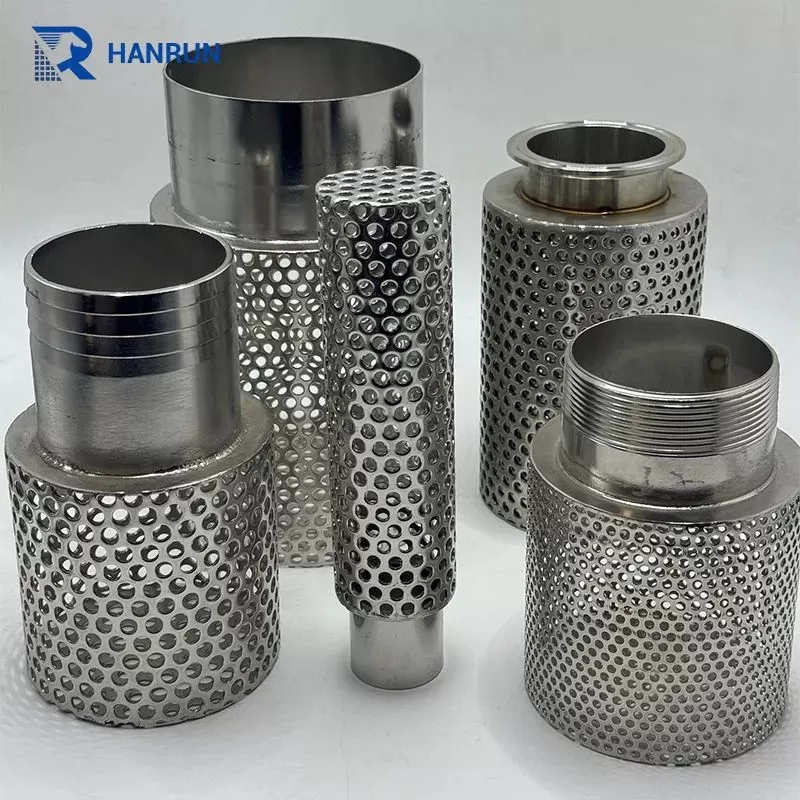

Yes. We can add threaded joints, pressure rings, flanges, bayonet interfaces, etc., as required.
3. Can the cylinder diameter and length be customized?
Customization is supported. You can provide specific parameters or drawings for customized production.
4. Can your cylindrical mesh filters be multi-layer composite?

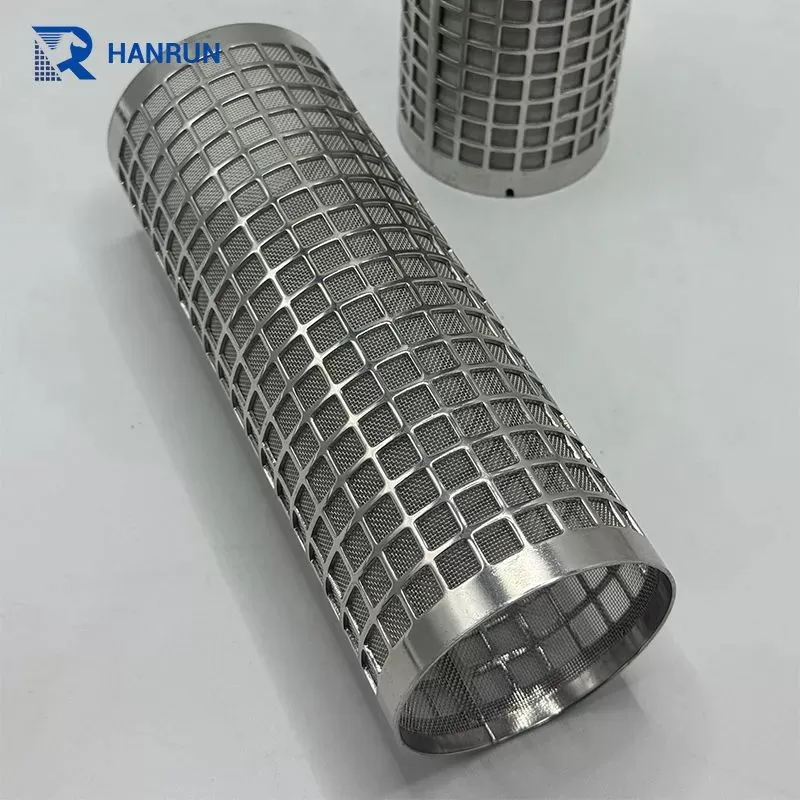

We support double-layer, three-layer, and five-layer filtration structures: outer layer for support, middle layer for filtration, and inner layer as a framework.
5. What port styles can your cylindrical mesh filters have?
We support various interface designs such as open/closed/double-open/groove port/with flange ring/bayonet.
VIDEO
WANT TO SPEAK TO US?
The quickest way to identify the best solution for your needs is to speak with one of our team of experts.We'l be able to quickly narrow down your options and give you objective advice on the best fit.
Related Products
Other - shaped mesh filters are customized products, covering shapes such as conical, triangular, and irregular geometric forms. They use stainless steel mesh, copper mesh, and epoxy - coated mesh as raw materials to precisely match the filtering requirements of special equipment.
The sheet - type mesh filter is a high - precision metal filtering element. It is made of high - quality materials such as stainless steel mesh, copper mesh, and epoxy - coated mesh.
