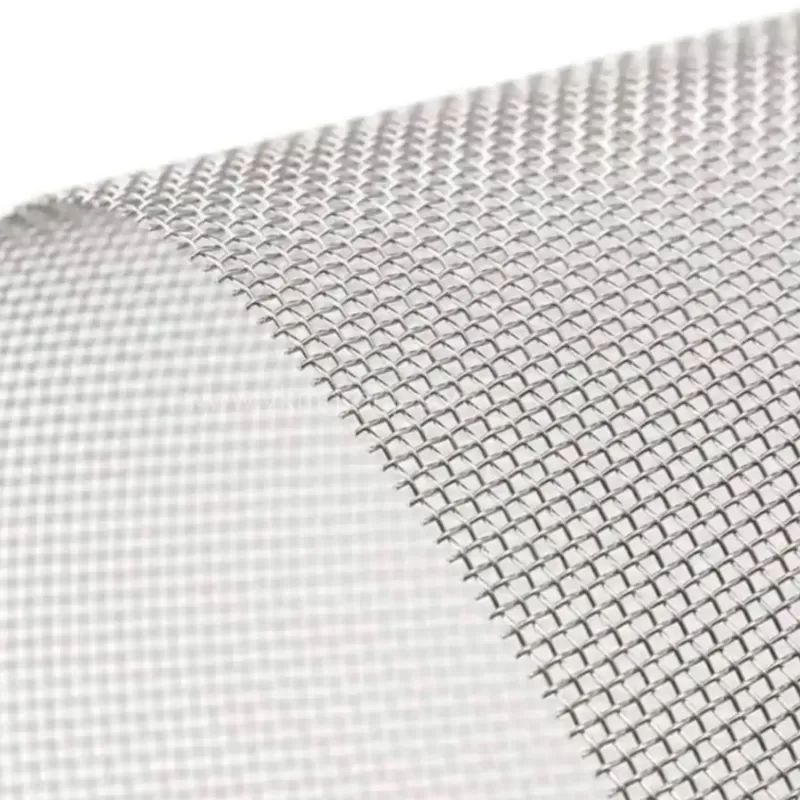

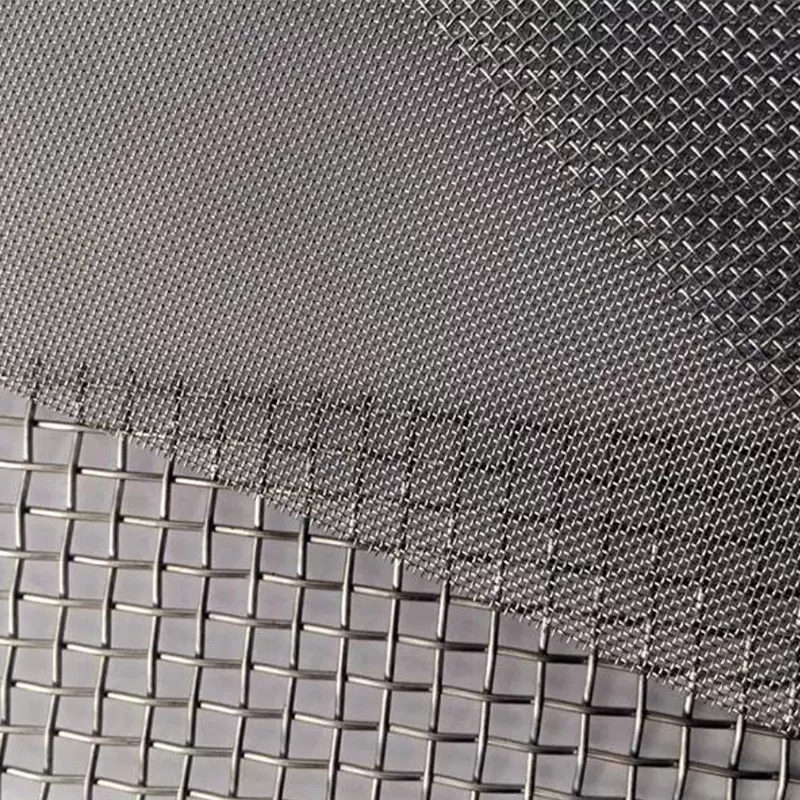

Nickel Wire Mesh

Nickel woven mesh, also known as nickel wire cloth or nickel wire screen, is made from high-purity nickel wire (with a nickel content of over 99.9% provided by NHGT) through interlaced weaving. It is commonly used as a filtration medium. The main weaving methods include plain weave, twill weave, and Dutch weave. Among them, plain weave is the most widely used, characterized by its square mesh openings.

Nickel wire mesh has good electrical conductivity, thermal conductivity, ductility, and acid-alkali resistance. It plays a very important role in the fields of electrolytic hydrogen production, new energy, and fuel cell technology. It is often used as a metal filtering material in mining, petroleum, chemical, food, pharmaceutical, and machinery industries.

Inquire Now

Features

Excellent conductivity

A top conductive material, ideal for electronics and communications like electromagnetic shielding and conductive cloth.

High-temperature stability

Withstands high temperatures stably, perfect for high-temperature reactors and catalyst carriers in chemical and petroleum sectors.

Strong corrosion resistance

Resists acids, alkalis, salts, widely used in chemical and pharmaceutical equipment and pipelines.

High load capacity

High tensile strength and fatigue resistance, suitable for filters, screens, and protective nets.

PRODUCT ADVANTAGES

Long-lasting durability

Its service life is much longer than that of ordinary metal meshes, which can reduce the labor and material costs caused by frequent replacements.

Flexible specifications

The parameters such as mesh size and wire diameter can be adjusted according to actual needs, making it easily adaptable to various scenarios.

Environmentally friendly and recyclable

As a metal material, it can be recycled and reprocessed after being discarded, which conforms to the concept of green environmental protection.

Full-scenario compatibility

It can operate stably in various harsh environments such as acid-alkali corrosion and high-temperature baking, and is suitable for chemical workshops, food processing lines, and other scenarios.

Easy to process and maintain

It has good plasticity, facilitating processing operations such as cutting and bending, and making installation and later maintenance more convenient.

Nickel Mesh 200 Specifications

Item	Mesh	Diameter (inch)	Weave Type	Width Opening (inch)	Open Area (%)
NI200-1	8×8	0.0280	Plain	0.0970	60.20
NI200-2	10×10	0.0200	Plain	0.0800	64.00
NI200-3	12×12	0.0140	Plain	0.0693	69.20
NI200-4	16×16	0.0120	Plain	0.0505	65.30
NI200-5	16×16	0.0140	Plain	0.0485	60.20
NI200-6	20×20	0.0045	Plain	0.0455	82.80
NI200-7	20×20	0.0070	Plain	0.043	74.00
NI200-8	20×20	0.0140	Plain	0.0360	51.80
NI200-9	25×25	0.0060	Plain	0.0190	57.80
NI200-10	26×26	0.0100	Plain	0.0285	54.80
NI200-11	30×30	0.0130	Plain	0.0203	37.20
NI200-12	40×40	0.0060	Plain	0.0190	57.80
NI200-13	40×40	0.0100	Plain	0.0150	36.00
NI200-14	50×50	0.0020	Plain	0.0180	81.00
NI200-15	60×60	0.0070	Plain	0.0097	33.60
NI200-16	60×60	0.0105	Twil	0.0062	13.70
NI200-17	60×60	0.0100	Twill	0.0057	11.60
NI200-18	70×70	0.0040	Plain	0.0103	51.80
NI200-19	70×70	0.0045	Plain	0.0098	46.90
NI200-20	70×70	0.0080	Twill	0.0063	19.40
NI200-21	80×80	0.0055	Twil	0.0070	31.40
NI200-22	85×70	0.0060	Plain	0.0000	28.40
NI200-23	100×100	0.0020	Plain	0.0080	64.00
NI200-24	100×100	0.0040	Plain	0.0060	36.00
NI200-25	100×100	0.0045	Plain	0.0060	30.30
NI200-26	200×200	0.0018	Plain	0.0032	41.00

Nickel Mesh 205 Specifications

Item	Mesh	Diameter (inch)	Weave Type	Width Opening (inch)	Open Area (%)
NI205-1	60×60	0.0060	Plain	0.0107	41.00

Nickel Mesh 270 Specifications

Item	Mesh	Diameter (inch)	Type Weave	Width Opening (inch)	Open Area (%)
NI270 - 1	50×50	0.0670	Plain	0.0133	44.2
NI270 - 2	60×60	0.0040	Plain	0.0127	57.8
NI270 - 3	60×60	0.0060	Plain	0.0107	41.0
NI270 - 4	60×60	0.0070	Plain	0.0097	33.6
NI270 - 5	75×75	0.0060	Plain	0.0073	30.3

FAQ

1. What are the main application fields of nickel mesh?
It is often used in battery electrodes, chemical catalysis, gas separation, hydrogen production, electronic materials, electrolytic industry, etc.

2. What nickel mesh materials do you provide?
We usually use pure nickel (Ni200/201) and can also provide nickel alloys such as Monel and Inconel.

3. Is your nickel mesh resistant to high temperatures?
Our nickel mesh is highly resistant to high temperatures, up to 1000°C or above, and is widely used in high-temperature gases, heat treatment, vacuum furnaces, etc.

4. How is the corrosion resistance of your nickel mesh?
Our nickel mesh has strong resistance to alkali corrosion and some acid corrosion, making it particularly suitable for caustic environments.

5. How is your nickel mesh packaged? Is transportation safe?
Our nickel mesh is packaged with moisture-proof paper + plastic sealing + wooden boxes and pallets to ensure that the products are not damaged, deformed, or oxidized.

Applications of Nickel Mesh

Shielded rooms and Faraday cages

Electrode substrates or current collectors for fuel cells

Filtration in sulfuric and hydrochloric acid environments

Seawater exchange and evaporation systems

Manufacturing of uranium enrichment and isotope separation equipment.

Automotive Industry: Used as piezoelectric material support mesh for detecting tire pressure changes and in battery electrodes, improving sensitivity and energy conversion efficiency.

Aerospace Industry: Used in fuel cells and cable shielding, offering high-temperature and corrosion resistance.

Chemical Industry: Used as anode mesh in electrolyzers for caustic soda (sodium hydroxide) production, providing long-term resistance to high-temperature, strong alkaline corrosion.

Oil and Gas Industry: Used as a catalyst carrier in refineries.

Chemical Industry: Used in filtration and electrode materials for acidic environments.

New Energy Industry: Used as diffusion layers and electrode structures in hydrogen fuel cells.

Electrical and Electronics Industry: Used in battery electrodes and electromagnetic shielding materials.
