Stainless Steel Mesh

Stainless steel woven mesh is classified by aperture type and weaving method into square mesh (plain weave, twill weave) and Dutch weave mesh (plain Dutch weave, twill Dutch weave, double warp Dutch weave, reverse plain Dutch weave, reverse twill Dutch weave, and optimized designs).

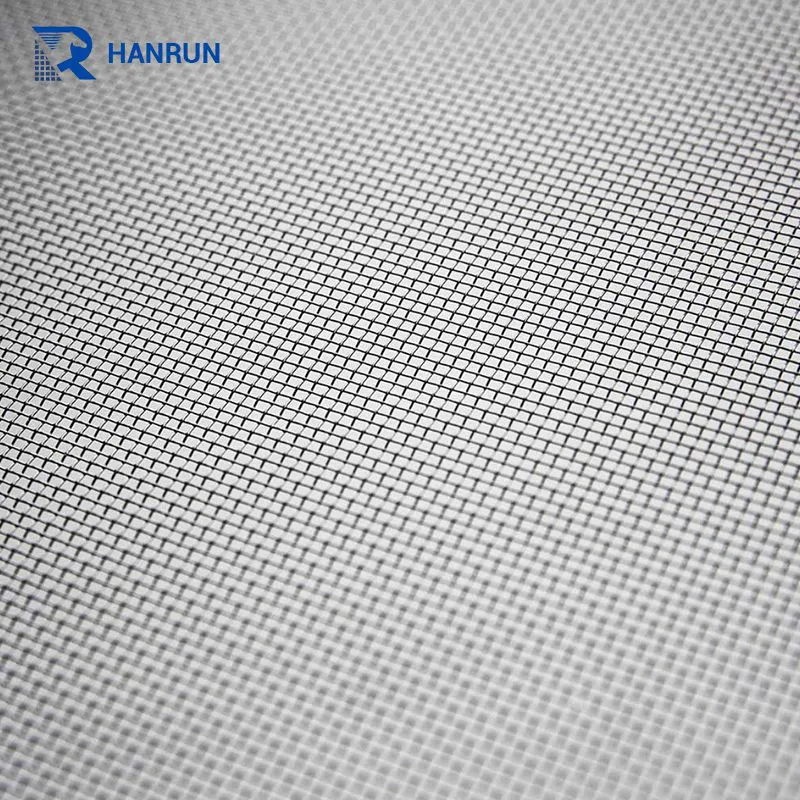

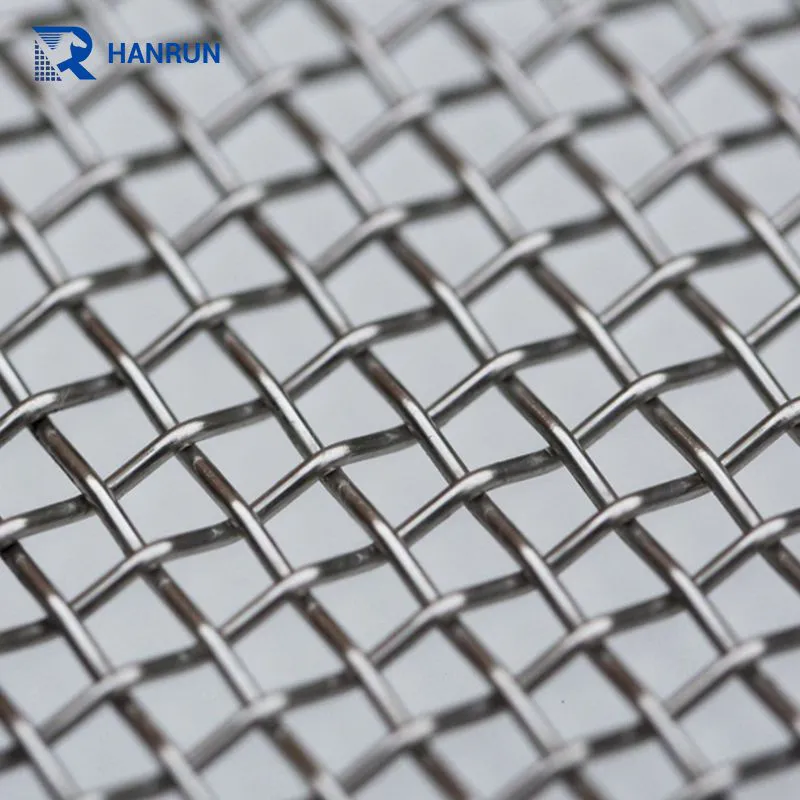

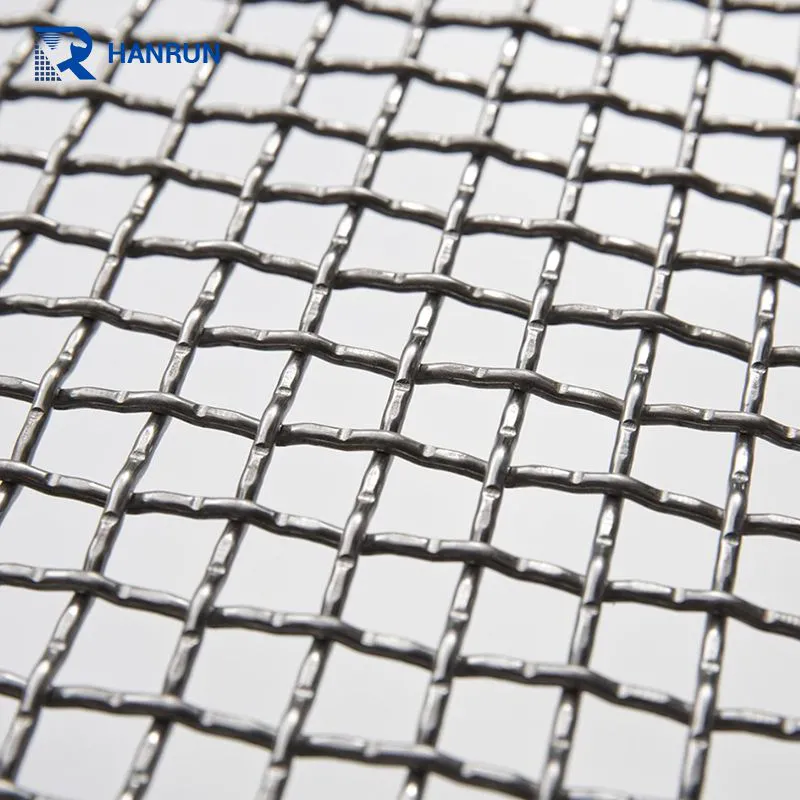

· Square Mesh: Typically, the warp and weft wires have the same diameter, and the mesh count is identical in both directions (except for rectangular mesh, where the warp and weft mesh counts differ). It is available in plain weave and twill weave.

· Dutch Weave Mesh: Also known as Dutch wire cloth, it is woven from high-quality stainless steel wire. Its main feature is the significant difference in warp and weft wire diameters and densities, resulting in greater mesh thickness, improved filtration precision, and extended service life compared to square mesh. Particularly in terms of filtration speed, square mesh cannot match Dutch weave mesh.

· Reverse Dutch Weave Mesh: A specialized filtration mesh with a significantly higher warp mesh count than the weft count. The warp wire diameter is smaller than the weft wire diameter, making it more challenging to weave than plain Dutch weave. It features high mesh strength, superior filtration precision, and high efficiency.

Woven stainless steel mesh is widely used in aerospace, petroleum, and chemical industries. It is suitable for applications such as plastic extruder screens, cast film machines, and coating machine filtration, including plastic woven bags, plastic films, ink cartridges, and wastewater treatment.

Product Advantages

Our stainless steel mesh is available in a wide range of specifications, with square mesh ranging from 1 to 635 mesh, Dutch weave mesh reaching up to 3500 mesh, and apertures ranging from 0.015 mm to 8 mm, with widths of up to 6 meters. All products can be manufactured according to national standards (GB), ISO, ASTM, and DIN standards.

Hanrun’s high-precision fine mesh products are produced using imported German and Japanese weaving machines, as well as our self-developed intelligent CNC weaving machines, ensuring excellent mesh flatness, high filtration precision, and stable performance. After deep processing, these meshes are used to manufacture precision pressure filters, fuel filters, and vacuum filters, which are widely used in aerospace, petroleum, chemicals, fiber, rubber, metallurgy, pharmaceuticals, and food industries.

Additionally, stainless steel security screens are highly durable and versatile. They can be installed on windows and door frames to prevent intrusions and keep out insects. Government agencies and construction companies rely on stainless steel security screens to protect building interiors from severe weather, shattered glass, and debris.

Manufacturers of emergency shelters integrate stainless steel security screens and stainless steel mesh into walls and doors to enhance protection against intruders. Furthermore, stainless steel mesh is an excellent solution for gutter protection, preventing leaves and other debris from clogging drainage systems.

Material: SS304/SS316/316L/201
