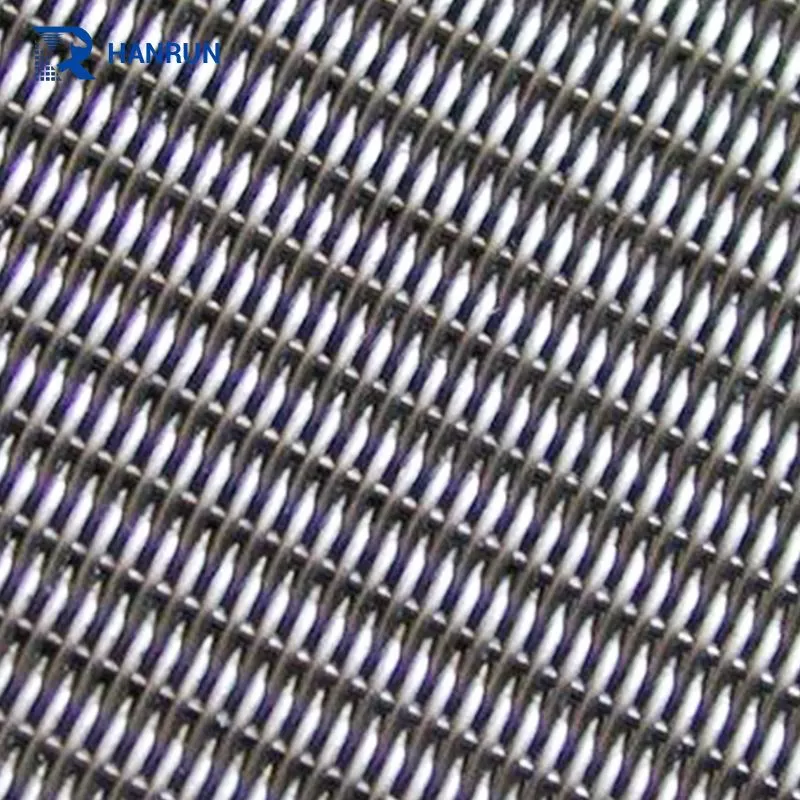

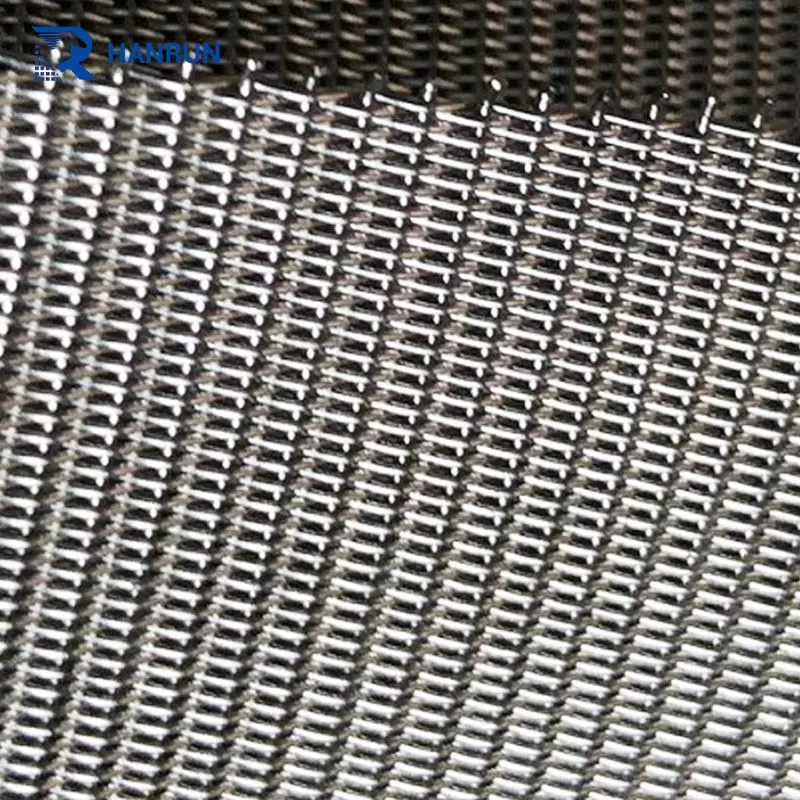

Stainless Steel Plain Dutch Weave Mesh

Stainless steel plain Dutch weave mesh is crafted using a plain weave technique, featuring fewer warp wires with larger diameters to ensure strength, and more weft wires with smaller diameters to control mesh precision. Through advanced equipment and strict process parameter control, it achieves a uniform, tight, and stable mesh structure.

Materials: SS201, SS304, SS304L, SS316, SS316L, SS321, SS430, etc.

Inquire Now Next Product

Features

Balances strength and mesh precision

Offers more flexible diameter combinations of warp and weft wires compared to ordinary plain weave meshes.

Precise dimensions

Minimal mesh tolerance, regular shape, and higher uniformity than ordinary plain weave meshes, enabling accurate control over filtered or sieved particle sizes.

High density and fine apertures

Capable of producing ultra-fine meshes, suitable for high-precision scenarios.

Strong stability

The differentiated combination and tight interweaving of warp and weft wires result in excellent overall rigidity, tensile resistance, and deformation resistance. Mesh size remains stable even under stress or temperature fluctuations.

PRODUCT ADVANTAGES

High-precision filtration

Precise and uniform meshes enable micron-level or even sub-micron-level filtration.

Excellent wear and corrosion resistance

Stainless steel substrates provide acid-alkali resistance and rust resistance, offering a much longer service life than ordinary woven meshes.

Adaptable to complex working conditions

Resistant to high temperatures, suitable for filtering high-temperature fluids; withstands high pressure, ensuring stability without damage in high-pressure fluid environments, outperforming ordinary plain weave meshes.

Irreplaceability

In certain fields, its precision and stability cannot be replaced by ordinary plain weave meshes or other weaving methods.

Specification

Mesh(warp x weft)	Diameter (inches, warp x weft)	Absolute filtration precision (μm)	Nominal filtration precision (μm)
8×85	.014×.0126	300-320	310
12×64	.024×.0165	260-280	250
14×88	.020×.013	255-275	250
20×150	.0098×.007	155-185	120
24×110	.015×.010	115-128	110
30×150	.009×.007	90-105	90
40×200	.007×.0055	70-80	70
50×250	.0055×.0045	52-57	55
80×400	.0049×.0028	40-45	40

Applications

Stainless steel plain Dutch weave mesh is mainly used in high-precision filtration (e.g., pharmaceuticals, food and beverage, electronics, and high-end chemical products), precision sieving (classification of micro-particles and fine powders), special working condition protection (filtration of fluids in high-temperature and high-pressure environments, and corrosion-resistant isolation), as well as high-end fields with extreme demands for precision and stability, such as semiconductor manufacturing and aerospace.

FAQ

1. What are the structural characteristics of your stainless steel plain Dutch weave mesh?

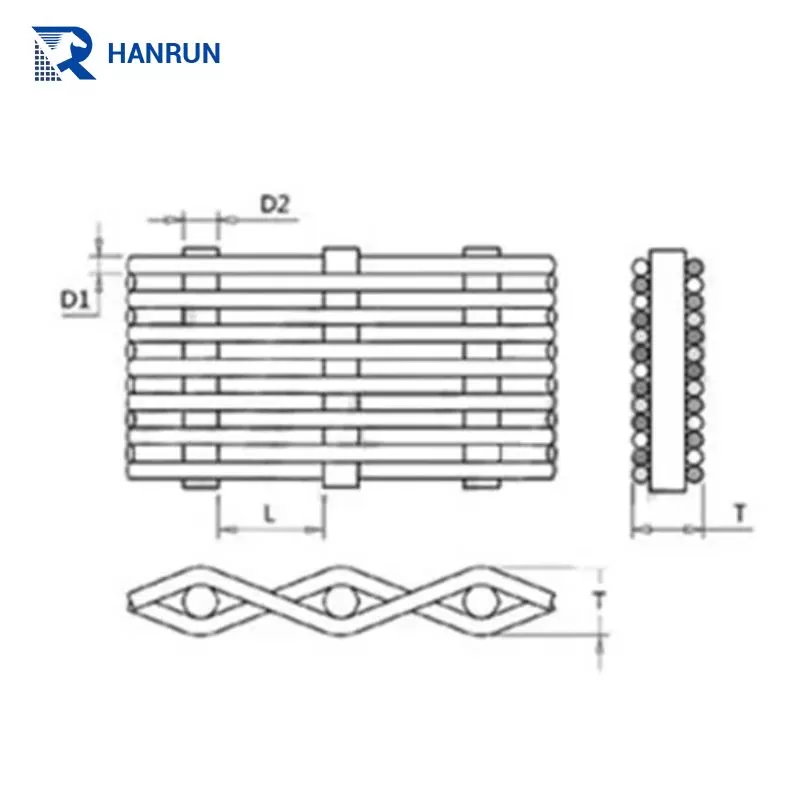

The weft wires are thicker, and the warp wires are thinner. The mesh holes form wedge-shaped channels, with a dense structure, suitable for high-density filtration.

2. In which industries is your stainless steel plain Dutch weave mesh mainly used?
It is used in hydraulic oil filters, fuel systems, chemical industry, pharmaceuticals, precision instrument filtration, and other occasions with high precision requirements.

3. Can your stainless steel plain Dutch weave mesh be customized with different materials?
Yes. Common materials include 304, 316, and 316L. 310S, 904L, Hastelloy, etc., can also be customized according to requirements.

4. Do you offer cutting services for stainless steel plain Dutch weave mesh?
Yes, we can provide cutting processing to custom sizes.

5. Can your stainless steel plain Dutch weave mesh be shipped in rolls?
We support roll shipments. Regular widths are 1m, 1.22m, and 1.5m.

VIDEO

Fully automated stainless steel wire mesh production technology
