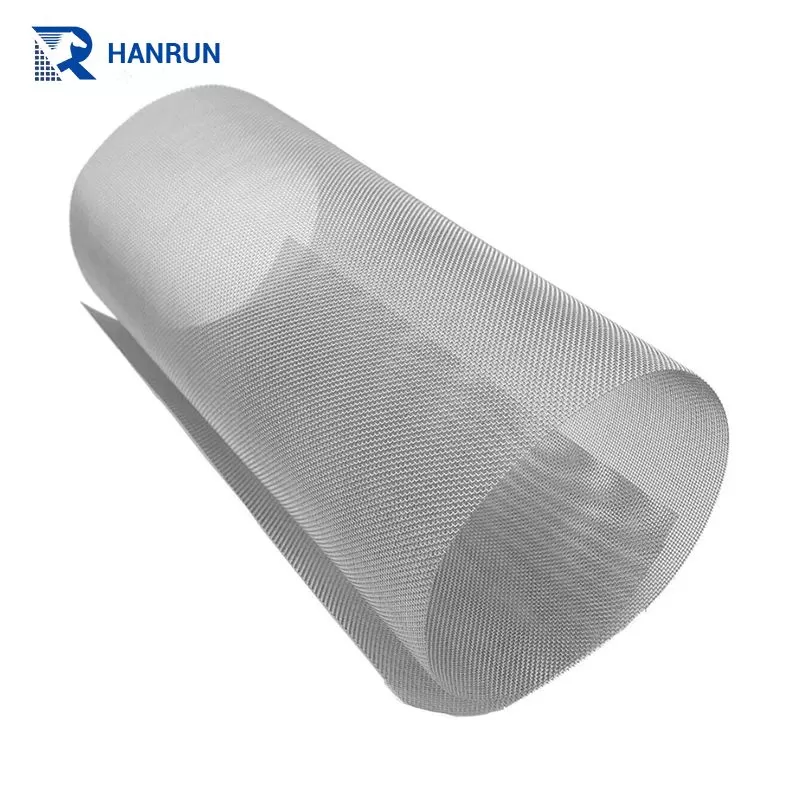

Stainless Steel Plain Woven Mesh

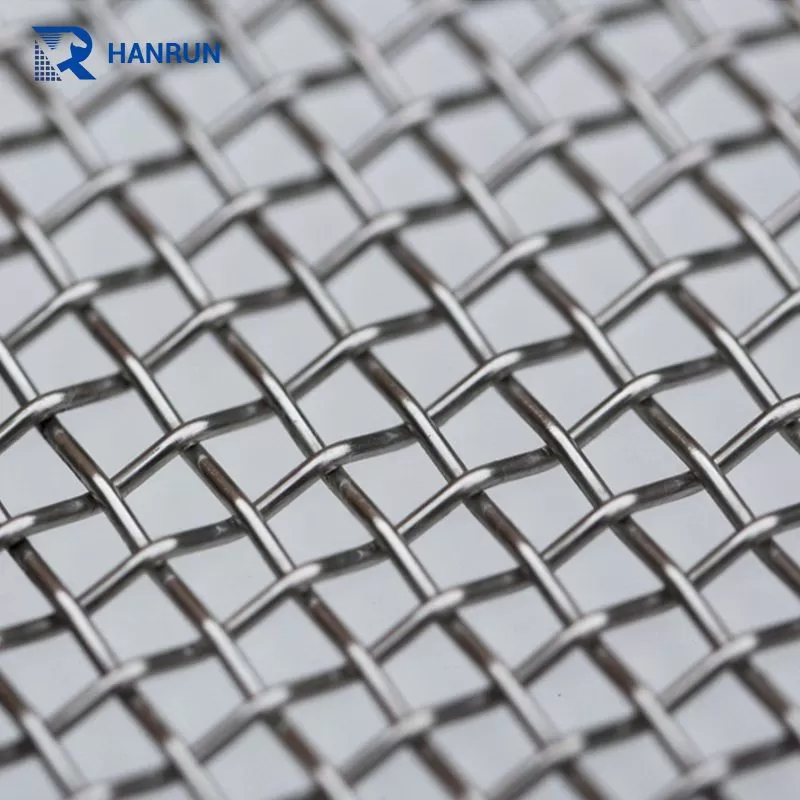

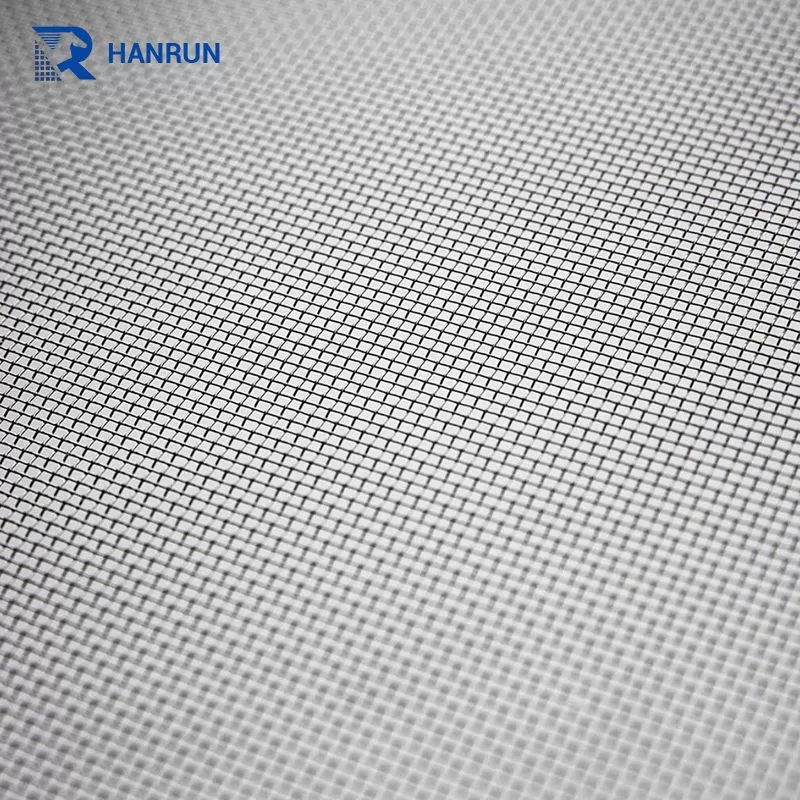

Stainless steel plain woven mesh adopts plain weaving process, i.e. each warp wire and weft wire are interlaced vertically with each other, one on top of the other. This makes the mesh surface structure stable, the mesh holes are even, and it has high strength and rigidity. At the same time, Hanrun can adjust the specifications according to customer requirements.

Material: SS304/SS316/316L/201

Inquire Now Next Product

Features

Long service life

With the characteristics of corrosion resistance and high strength, the service life of stainless steel plain woven wire mesh is much longer than that of ordinary woven wire mesh.

Strong adaptability

A variety of specifications can be flexibly customized for different working environments and application scenarios.

Stable structure

The mesh surface is a stable frame structure, which can resist external impact and long time vibration, and it is not easy to deform the mesh.

High temperature resistance

Stainless steel as the base material will not be deformed or deteriorate due to temperature change.

High strength and hardness

Stainless steel itself has high strength and hardness, which gives plain woven wire mesh good resistance to stretching and extrusion.

Specification

Specification (mesh)	Diameter (mm)	Aperture (mm)	Open Area Ratio (%)	Width (mm)
30×30	0.2290	0.6200	53.3	20-2000
35×35	0.2790	0.4500	38.1	20-2000
40×40	0.2540	0.3800	35.9	20-2000
50×50	0.2290	0.2800	30.3	20-2000
50×50	0.2030	0.3100	36.5	20-2000
60×60	0.1910	0.2300	29.8	20-2000
60×60	0.1780	0.2500	34.1	20-2000
70×70	0.1650	0.2000	30.0	20-2000
80×80	0.1400	0.1800	31.6	20-2000
80×80	0.1200	0.1970	38.6	20-2000
90×90	0.1270	0.1600	31.1	20-2000
100×100	0.1140	0.1400	30.4	20-2000
100×100	0.1020	0.1500	35.4	20-2000
100×100	0.0890	0.1700	43.1	20-2000
110×110	0.1016	0.1295	31.4	20-2000
120×120	0.0940	0.1168	30.7	20-2000
150×150	0.0600	0.1041	40.2	20-2000
160×160	0.0635	0.0965	36.4	20-2000
180×180	0.0584	0.0838	34.7	20-2000
200×200	0.0533	0.0737	33.7	20-2000
250×250	0.0400	0.0610	36.5	20-2000
270×270	0.0400	0.0540	33.0	20-2000
300×300	0.0400	0.0446	27.8	20-2000
325×325	0.0356	0.0432	30.1	20-2000
400×400	0.0300	0.0330	27.4	20-2000
Remarks	Customizable specifications, wire diameters and sizes

Applications

Filtration field: used for liquid and gas filtration in pharmaceutical, food, chemical and other industries.

Sieving field: used for sieving granular materials, such as in ore processing, powder metallurgy, construction materials and other industries.

Protection field: it can be used as protective net, such as the protective cover of mechanical equipment, protective net of buildings, etc.

Other fields: can be used in electronics, aerospace and other high-end fields.

FAQ

1. What materials do you offer for stainless steel plain weave filter meshes?
Common materials include 304, 304L, 316, 316L, 314, and 321. Special stainless steels (such as 904L and 310S) can also be customized according to requirements.

2. Can you provide samples of stainless steel plain weave filter meshes?
We are happy to provide samples for your testing. The regular size is A4. If you need a larger size, please contact us for a quotation.

3. Can the mesh size and wire diameter of your stainless steel plain weave mesh be customized?
Yes. We can produce meshes from 1 mesh to 400 mesh, with wire diameters ranging from 0.02mm to 2.0mm, and customization is available.

4. What are the width and roll length of your stainless steel plain weave mesh?
Regular widths are 1m, 1.22m, and 1.5m, with a roll length of 30m. Custom width and length cutting is supported.

5. How do you control the flatness and precision of the stainless steel plain weave mesh surface?
We use imported mesh weaving machines and automatic tension control technology to ensure a flat mesh surface and high consistency of mesh holes.
