Stainless Steel Twill Dutch Weave Mesh

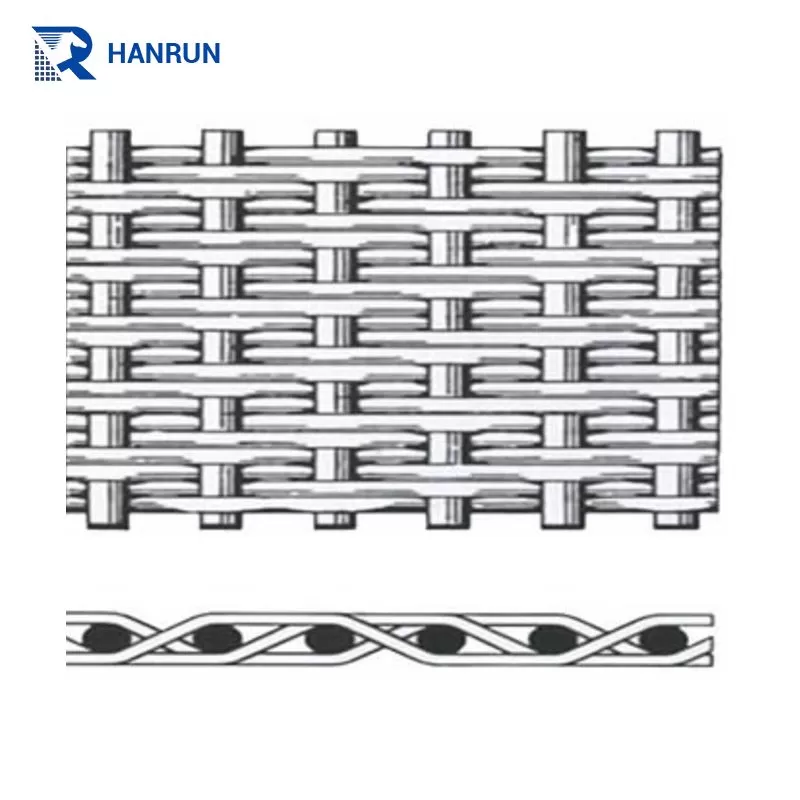

Stainless steel twill Dutch weave mesh is a high-precision metal mesh developed from plain Dutch weave, integrating the structural toughness of twill weaving with the precision characteristics of Dutch weaving.

Inquire Now Next Product

Features

Balanced precision and permeability

The mesh is fine and uniform, enabling sub-micron filtration. Meanwhile, the "effective flow area" of diagonal meshes is larger, resulting in better air and water permeability than plain Dutch weave mesh under the same precision.

Stronger structural stability

The diagonal interweaving increases the depth of the warp and weft wire bite, the mesh surface has outstanding impact and abrasion resistance, and the mesh size is still stable even in high pressure or high frequency vibration environments.

Adaptable to complex working conditions

Combined with the properties of stainless steel, it is resistant to high and low temperatures (-200℃ to 600℃), corrosion, and aging, allowing long-term use in harsh environments such as humidity, acid-alkali, and high temperatures.

PRODUCT ADVANTAGES

Higher filtration precision

Sub-micron interception efficiency reaches 99.9%, with better capture ability for colloids and micro-particles than plain Dutch weave mesh.

Superior mechanical properties

Tensile strength is 15%-20% higher than that of plain Dutch weave mesh of the same specification, suitable for high-pressure and high-flow rate scenarios.

Wider application range

It shows significant performance advantages in scenarios requiring "high precision + high stability + high fluidity".

Specification

Mesh(warp x weft)	Diameter (mm, warp x weft)	Filtration value (μm)
20×270	0.25×0.2	119
20×200	0.355×0.28	118
24×300	0.28×0.18	110
20×150	0.45×0.355	101
30×340	0.28×0.16	89
30×270	0.28×0.20	77
40×540	0.18×0.10	70
40×430	0.18×0.125	63
50×600	0.125×0.09	51
50×500	0.14×0.11	47
65×600	0.14×0.09	36
70×600	0.14×0.09	31
78×760	0.112×0.071	-
78×680	0.112×0.08	29
80×680	0.112×0.08	28
90×850	0.10×0.063	26
90×760	0.10×0.071	24
100×760	0.10×0.071	20
100×850	0.10×0.063	22
130×1100	0.071×0.05	17
130×1200	0.071×0.045	18
130×1500	0.063×0.036	21
150×1400	0.063×0.04	15
160×1500	0.063×0.036	-
165×1500	0.063×0.036	14
174×1700	0.063×0.032	13
165×1400	0.063×0.04	-
174×1400	0.063×0.04	11
203×1500	0.056×0.036	9
203×1600	0.05×0.032	10
216×1800	0.045×0.03	-
250×1600	0.05×0.032	-
250×1900	0.04×0.028	8
285×2100	0.036×0.025	7
300×2100	0.036×0.025	6
317×2100	0.036×0.025	5
325×2300	0.036×0.024	4
363×2300	0.032×0.022	-
400×2700	0.028×0.02	-
500×3500	0.025×0.015	3

FAQ

1. What is the difference between your twill Dutch weave mesh and ordinary Dutch weave mesh?
The weft wires are doubly interwoven, resulting in a denser structure and higher filtration precision, suitable for high-pressure/high-precision filtration environments.

2. Can your stainless steel twill Dutch weave mesh withstand high temperatures?
Yes. 304/316 stainless steel materials can withstand temperatures up to 600–800°C without deformation or melting.

3. What is the general delivery time for your stainless steel twill Dutch weave mesh?
You can provide specific product parameters, and we will provide a detailed delivery time within 12 hours.

4. Can your stainless steel twill Dutch weave mesh be shipped in rolls? Is transportation safe?
We support roll shipments. The packaging includes an inner paper tube + waterproof paper wrapping, covered with plastic film for moisture protection. Additionally, plywood cases and pallets are used for fixation to ensure the products remain undamaged during transportation.

5. Can your stainless steel twill Dutch weave mesh be customized into structural components according to customer drawings?
Of course. We can process welded filter discs, cylindrical filter elements, elliptical discs, and other structural parts according to customer drawings.

VIDEO

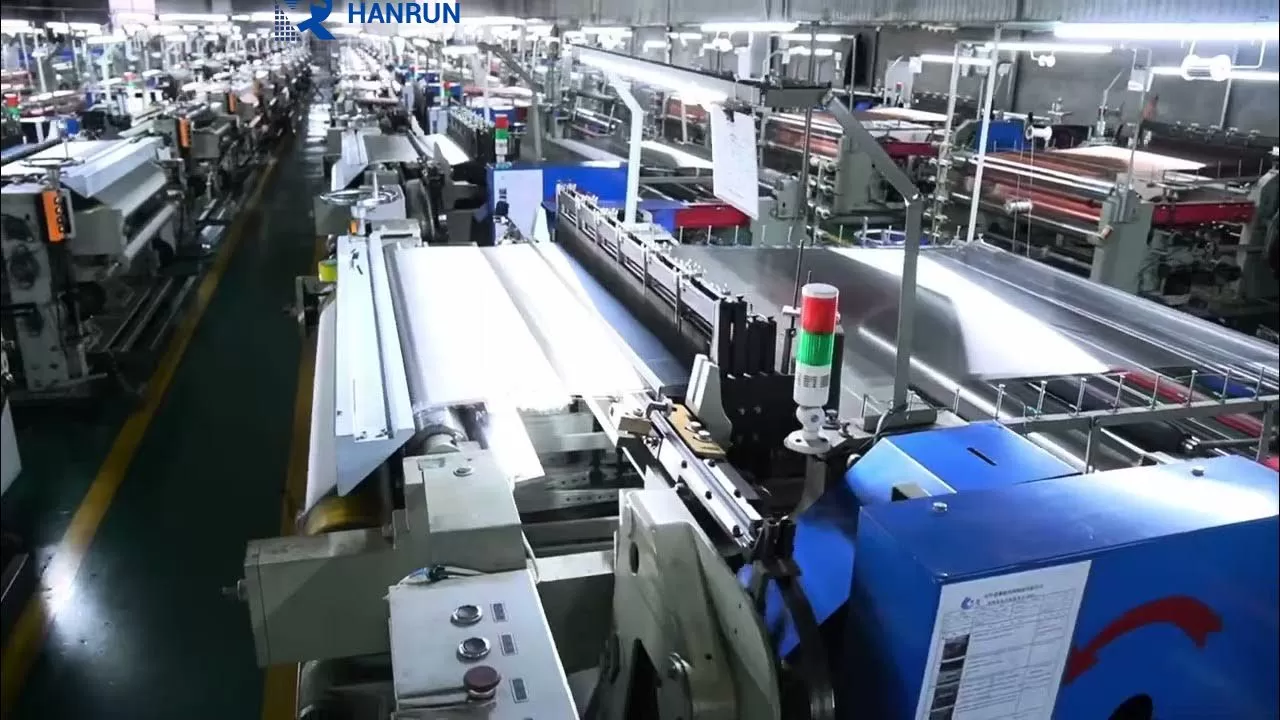

Fully automated stainless steel wire mesh production technology
