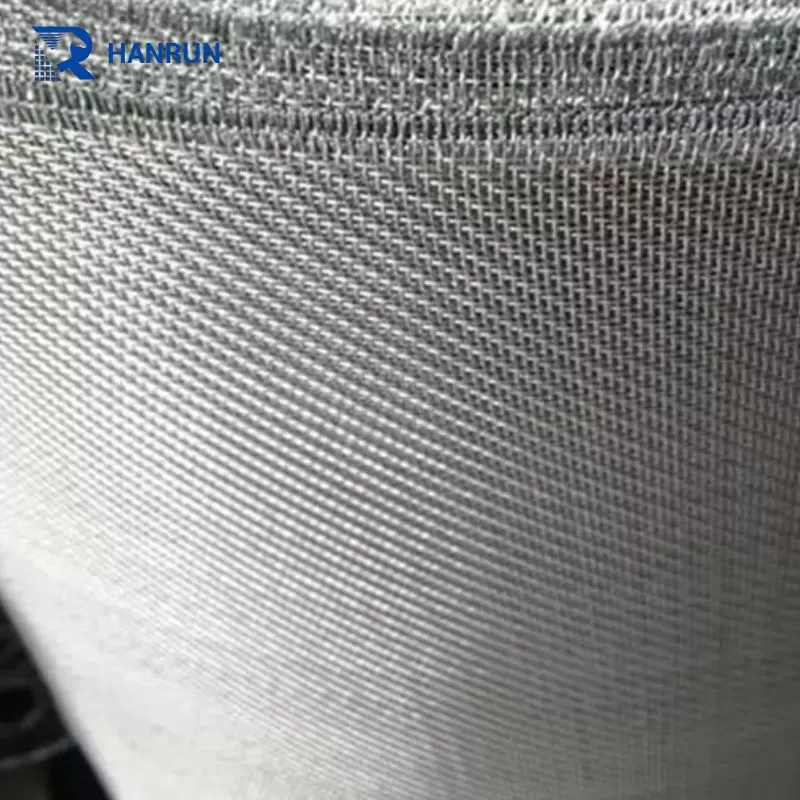

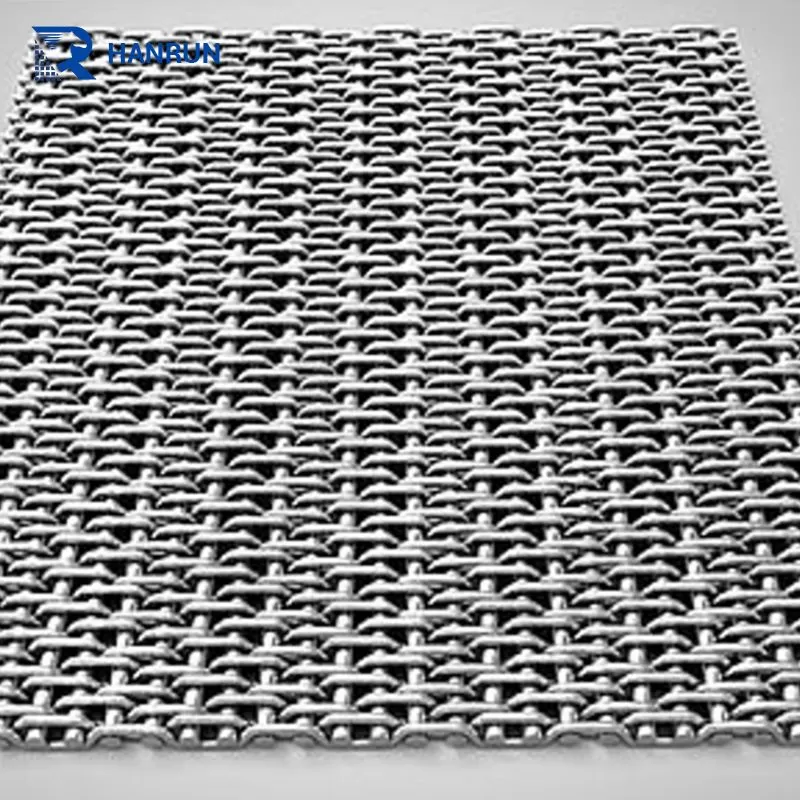

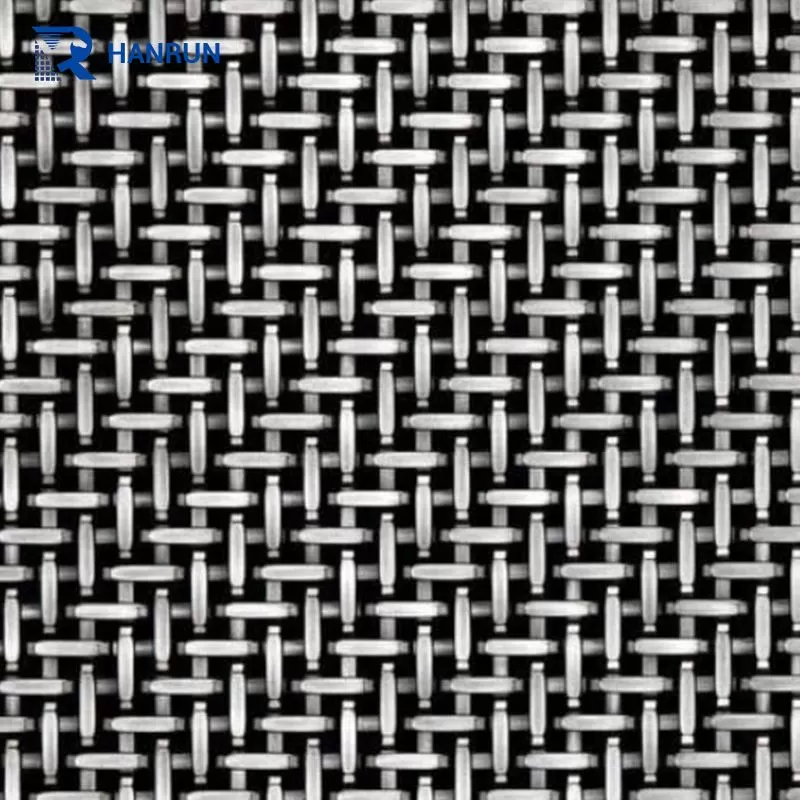

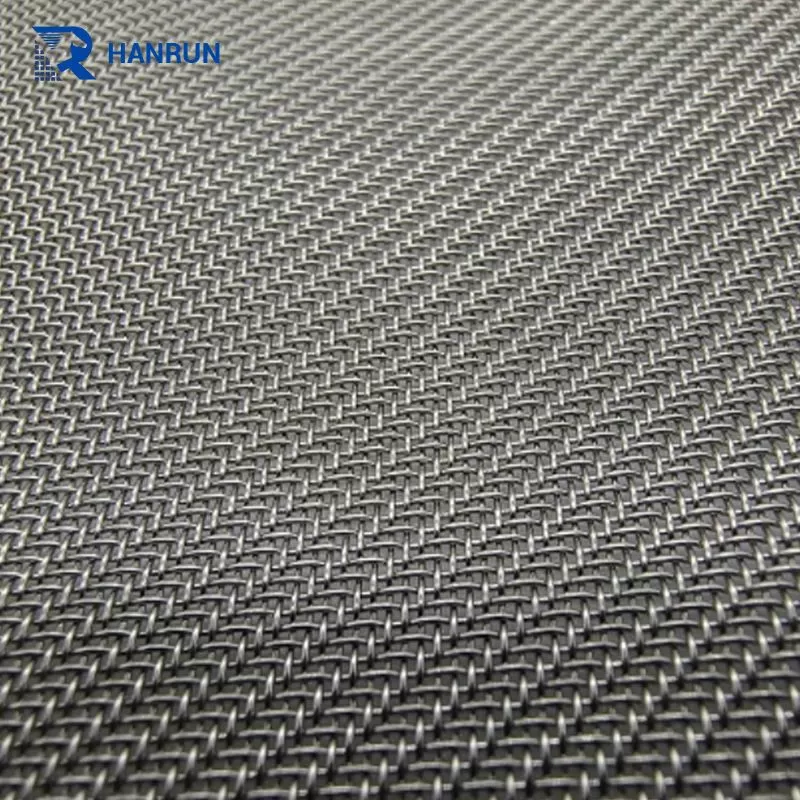

Stainless Steel Twill Weave Mesh

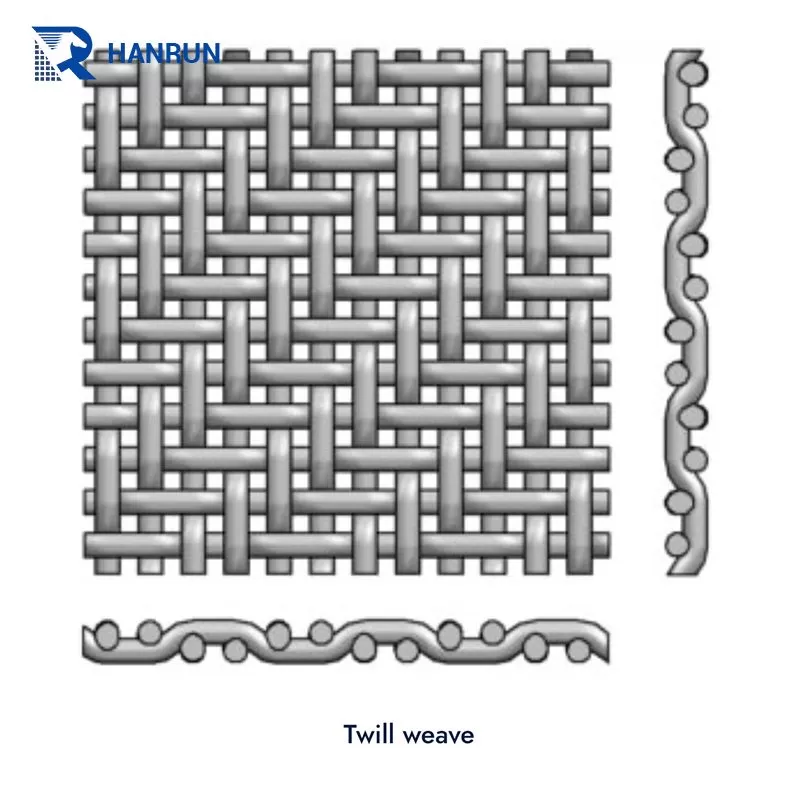

Stainless steel mesh twill weaving is the structure of warp and weft wires interwoven in a circular pattern of "across many, through many" to form an inclined pattern, and the process of which is accurately controlling the tension by special equipment to realize the crossing pattern of 2/2, 3/1, etc. to avoid uneven loosening and tightening of the mesh surface.

Material: SS201, SS 304, SS 304L, SS 316, SS 316L, SS 321 and SS 430, etc.

APPLICATIONS

Stainless steel twill woven wire mesh is widely used in industrial screening, filtration and separation, protective support and other scenes.

Inquire Now Next Product

Features

Stable mesh structure

Many intersections of warp and weft wires (each wire passes through 2 or more warp and weft wires alternately), regular shape of mesh holes and not easy to deform.

Strong adaptability between wire diameter and mesh

Thicker warp and weft wires can be used, which ensures a larger mesh size and maintains the overall strength.

Balanced air permeability and circulation

The mesh opening area is moderate, so fluids pass through with less resistance.

Bi-directional consistency

Both sides of the mesh are symmetrical, with no obvious difference between the front and back sides, so it can be used in both directions and has high installation flexibility.

PRODUCT ADVANTAGES

Higher strength

With more interwoven points and uniform force, the tensile and impact resistance is better than that of plain woven wire mesh, which can withstand heavier loads.

Wear-resistant

Slower abrasion rate than plain weave mesh, extending service life by more than 30%.

Suitable for high viscosity/large particle scenarios

Diamond mesh is not easy to be blocked by fibrous and flaky materials, and it is better for the passage of high-viscosity fluids.

Convenient processing

The mesh surface has good flatness and can be cut, welded, rolled and other secondary processing.

Specification

Mesh	Diameter (inches)	Diameter (mm)	Open area (%)
12×12	0.032	0.81	37.9
14×14	0.028	0.71	37
16×16	0.023	0.58	39.9
20×20	0.021	0.53	33.6
30×30	0.015	0.38	30.3
35×35	0.014	0.36	26
40×40	0.012	0.31	27
50×50	0.011	0.28	20.3
50×50	0.0055	0.14	52.6
60×60	0.011	0.28	11.6
60×60	0.0045	0.114	53.3
80×80	0.007	0.178	19.4
100×100	0.005	0.127	25
120×120	0.0042	0.107	24.6
120×120	0.004	0.102	27
150×150	0.003	0.076	30.3
180×180	0.0025	0.064	30.3
200×200	0.0025	0.064	25
250×250	.0016	.0406	36.0
270×270	.0016	.0406	32.2
300×300	.0015	.0381	29.7
325×325	.0014	.0356	30.0
400×400	.0010	.0254	36.0
500×500	.0010	.0254	25.0
635×635	.0008	.0203	25.0

FAQ

1. Can your stainless steel twill weave mesh be customized to specific specifications?
Yes. We can produce twill meshes from 12 mesh to 600 mesh and above, suitable for fine filtration and gas-liquid separation.

2. Will your stainless steel twill mesh have broken wires or deformation?
We use high-strength stainless steel wires and precision weaving technology, which provides good tension resistance and deformation resistance.

3. Can the surface of your stainless steel twill weave mesh be treated?
Yes. We offer annealing, pickling, ultrasonic cleaning, and other treatments to meet high cleanliness requirements.

4. What packaging forms are available for your stainless steel twill weave mesh shipments?
The standard packaging includes an inner paper tube + waterproof paper wrapping, covered with plastic film for moisture protection. Additionally, plywood cases and pallets are used for fixation to ensure the products remain undamaged during transportation.

5. Can you provide samples of stainless steel twill weave mesh?
We are happy to provide samples for your testing. The regular size is A4. If you need a larger size, please contact us for a quotation.

VIDEO

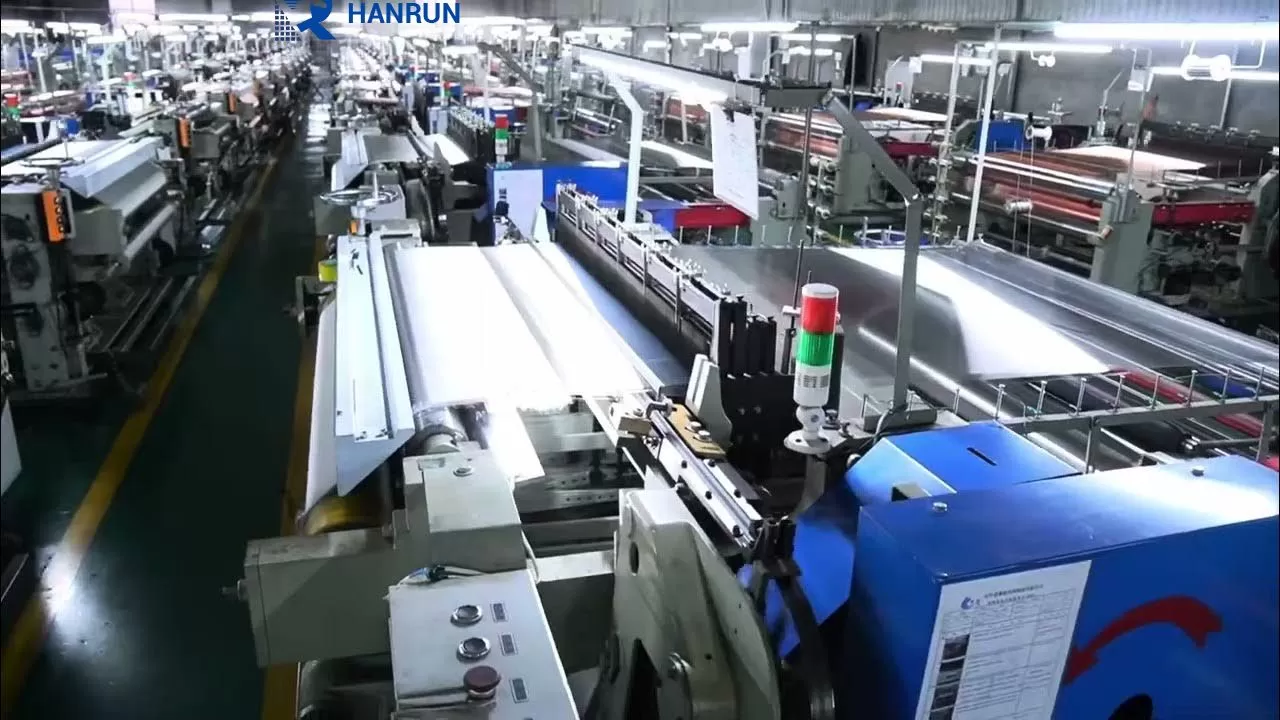

Fully automated stainless steel wire mesh production technology
