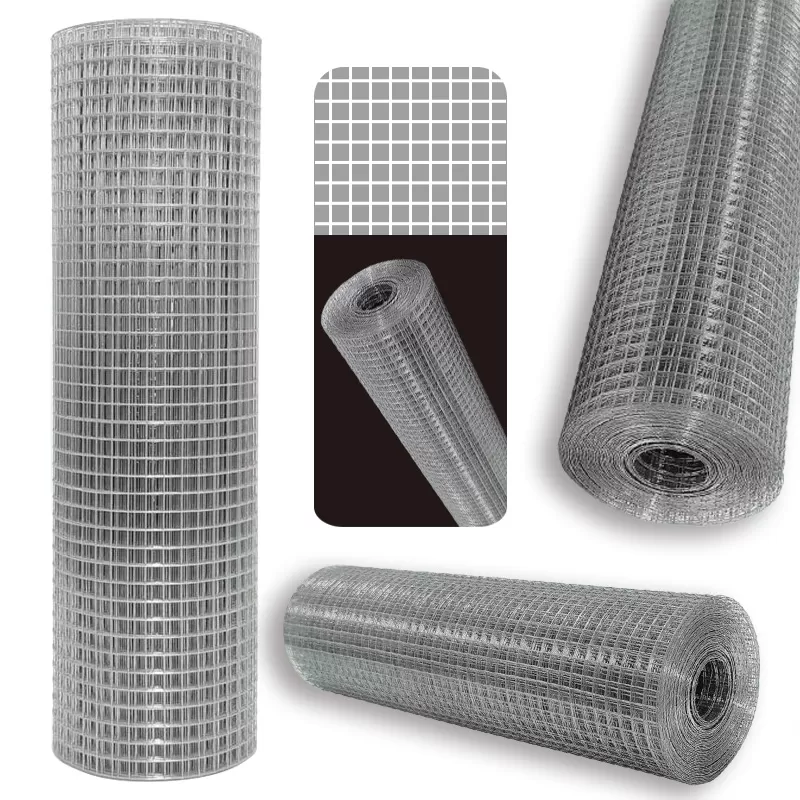

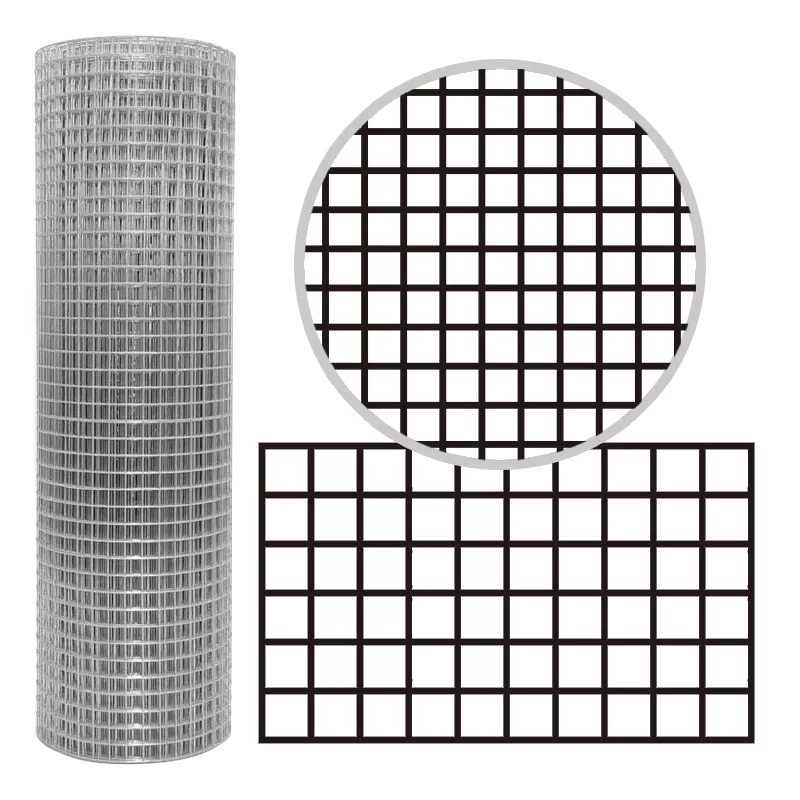

Galvanized Welded Wire Mesh

Galvanized welded wire mesh is a mesh product made from low-carbon steel wires as the base material, which are galvanized (hot-dip galvanized or electro-galvanized) and then welded and fixed at the intersections of the crisscross wires by automated welding equipment. The galvanized layer can effectively isolate the steel wires from air and moisture, improving corrosion resistance. The mesh specifications (mesh size, wire diameter, dimensions) can be customized according to requirements.

Inquire Now Next Product

Features

Good corrosion resistance

The galvanized layer forms a physical barrier, which can resist daily moisture and outdoor rain erosion, and delay the rusting speed of the steel wires.

Stable structure

The tensile strength of the welding points reaches more than 80% of that of the steel wires themselves, and the overall rigidity is moderate, so it is not easy to deform.

Accurate mesh precision

The mesh size is uniform and neatly arranged, and the error can be controlled within ±0.5mm.

Diverse surface treatments

In addition to the conventional silver-gray galvanized layer, custom colored galvanized coatings are available, which have both protective and decorative properties.

PRODUCT ADVANTAGES

Outstanding cost performance

It balances corrosion resistance and cost, with a lower cost than stainless steel welded mesh, making it suitable for large-area application scenarios.

Convenient installation

The mesh sheet is lightweight and can be directly cut and spliced without complex tools.

Wide adaptability

It can adapt to most normal temperature and dry environments and outdoor non-extreme corrosive environments.

Anti-aging

In the environment of -30℃ to 60℃, the galvanized layer is not easy to embrittle and fall off, and the change rate of the physical properties of the mesh sheet is less than 5%.

Flexible usage

The specifications can be adjusted according to needs, covering from filtering with fine meshes to protection with coarser meshes.

Specification

Opening（inch）	Opening（mm）	Wire Diameter (BWG)
2''×3''	50×75	2.0mm,2.5mm,1.65mm
3''×3''	75×75	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2''×4''	50×100	2.11mm,2.5mm
4''×4''	100×100	2.0mm,2.5mm

Applications

Construction engineering: Used for wall plastering reinforcement to prevent cracking, temporary isolation of post-cast strips, and enhancement of the stability of roof waterproofing bases, suitable for scenarios such as high-rise buildings and renovation of old walls.

Agriculture and breeding: Used to make poultry cages to resist fecal corrosion, serve as protective nets for greenhouses to block birds and beasts, build fences for orchards and farmlands to prevent damage from wild animals, and assist in isolating harmful organisms in aquaculture.

Municipal protection: Used as boundary fences for communities and parks, temporary enclosures for road construction, to protect green belts and public facilities, such as the outer protective nets of distribution boxes and anti-falling nets for bridges.

Industrial storage: Used as protective nets around equipment to isolate dangerous areas, partition workshops and separate storage shelves to prevent goods from falling, and also serve as primary screening nets in mines and sewage treatment.

Home scenarios: Used as protective nets for balconies and windows in low-rise residences, pet cages, and planting frames and flower support nets in home gardening.

FAQ

1. What types of galvanized welded mesh do you offer?
We provide electro-galvanized welded mesh and hot-dip galvanized welded mesh. The former is more affordable, while the latter has stronger corrosion resistance.

2. What are the main uses of your galvanized welded mesh?
It is commonly used in fence protection, livestock breeding cages, cable trays, construction formwork support, foundation pit protection, etc.

3. What is the difference between your hot-dip galvanizing and electro-galvanizing?
Hot-dip galvanizing has a thicker coating, stronger corrosion resistance, and a grayish-bright color; electro-galvanizing has a bright surface but a thinner coating and lower cost.

4. Can your galvanized welded mesh specifications be customized?
Yes. We can customize specifications according to your parameters. For details, please contact us.

5. Is your galvanized welded mesh suitable for outdoor use?
Our hot-dip galvanized welded mesh can be used outdoors for over 5–10 years with strong anti-corrosion performance.
